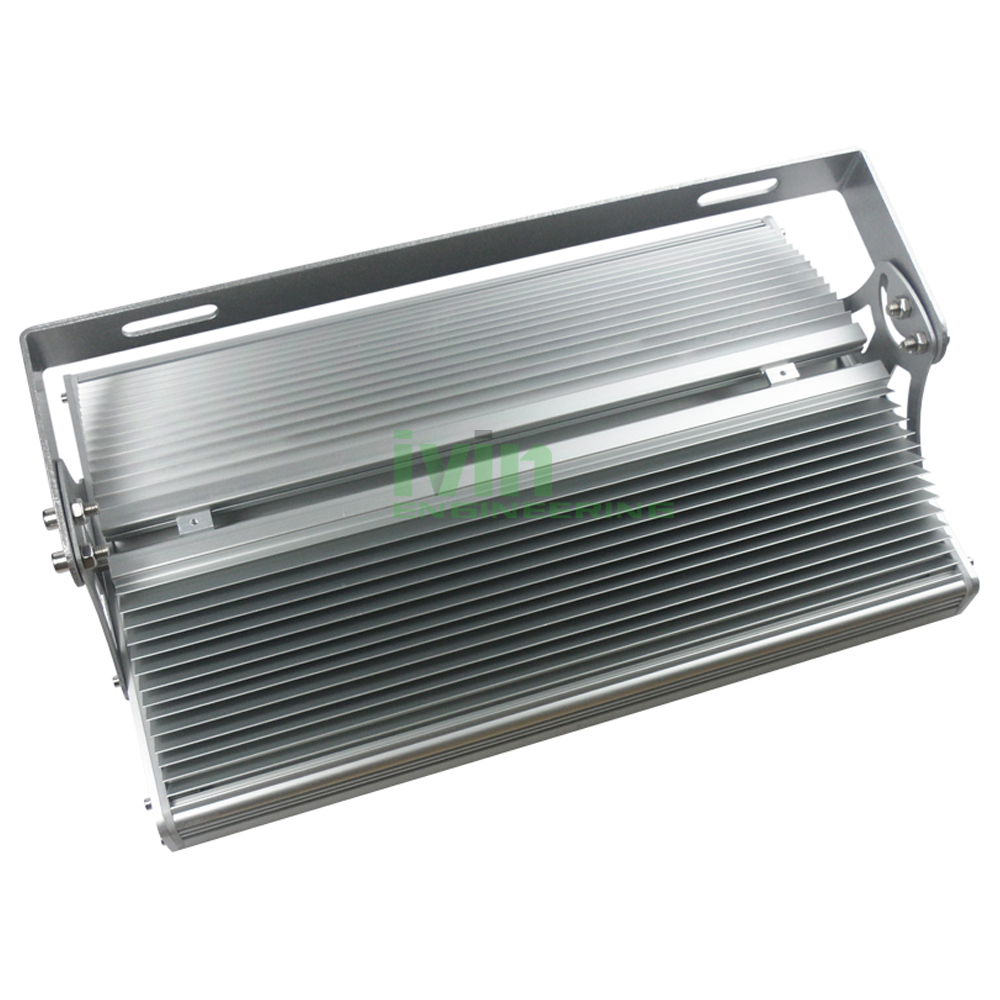

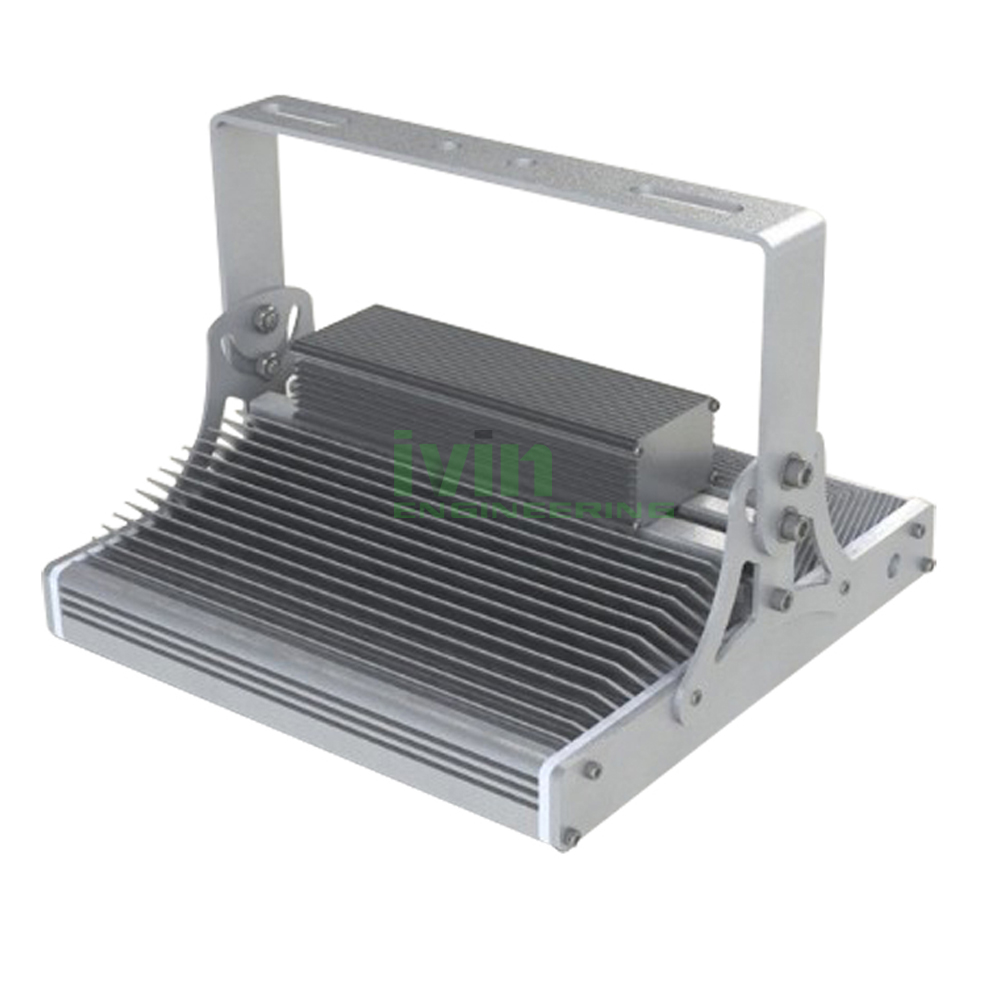

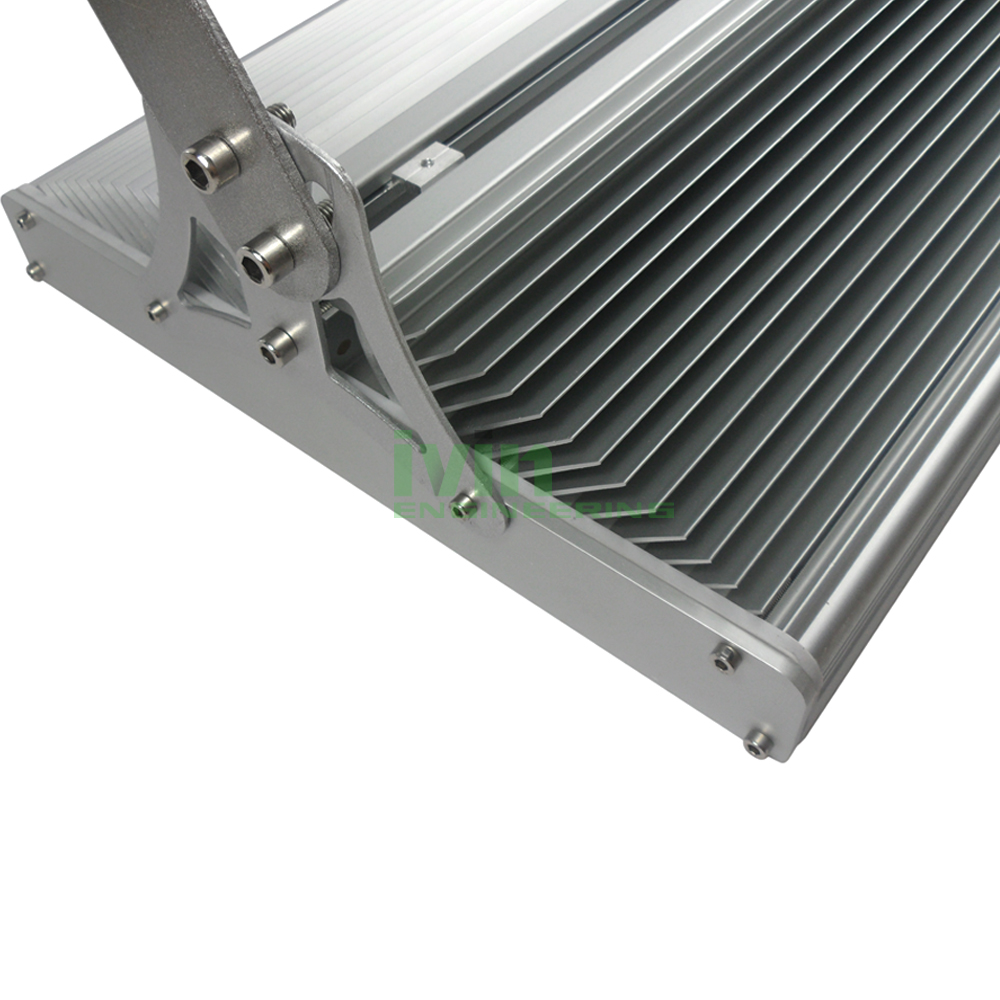

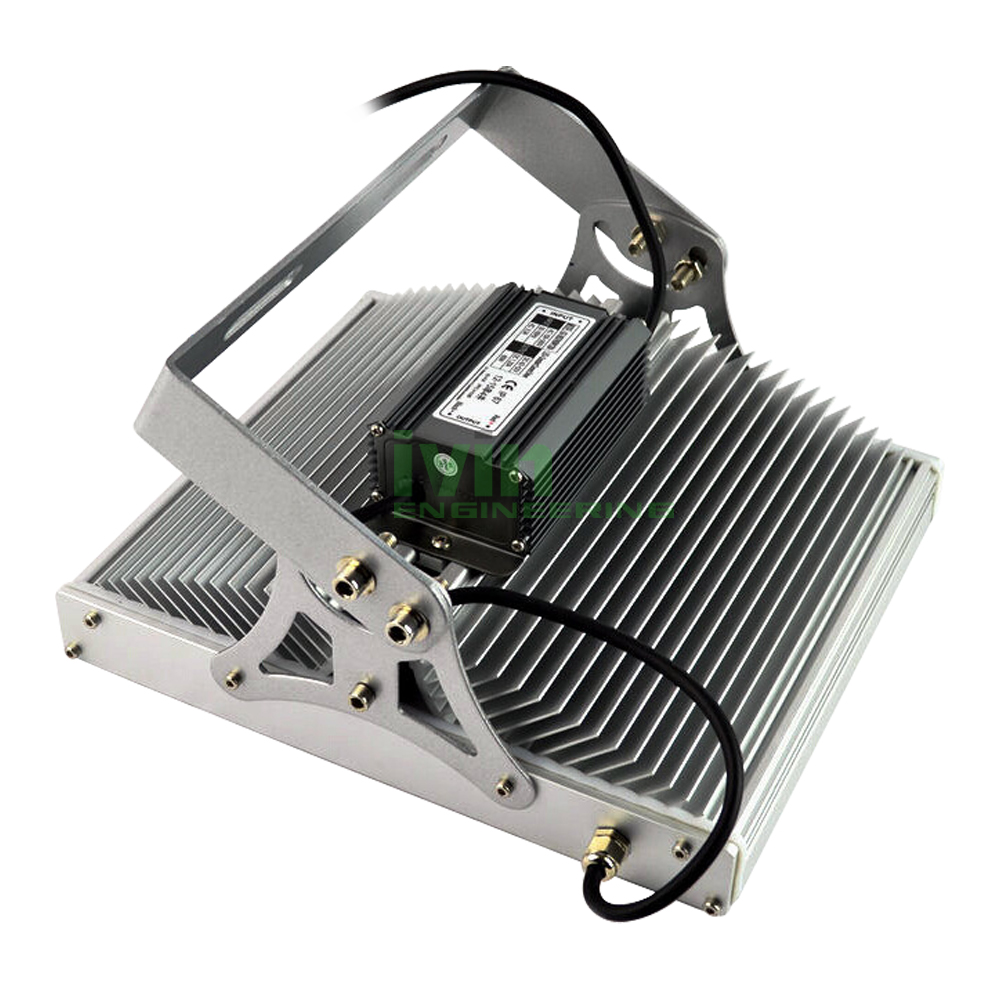

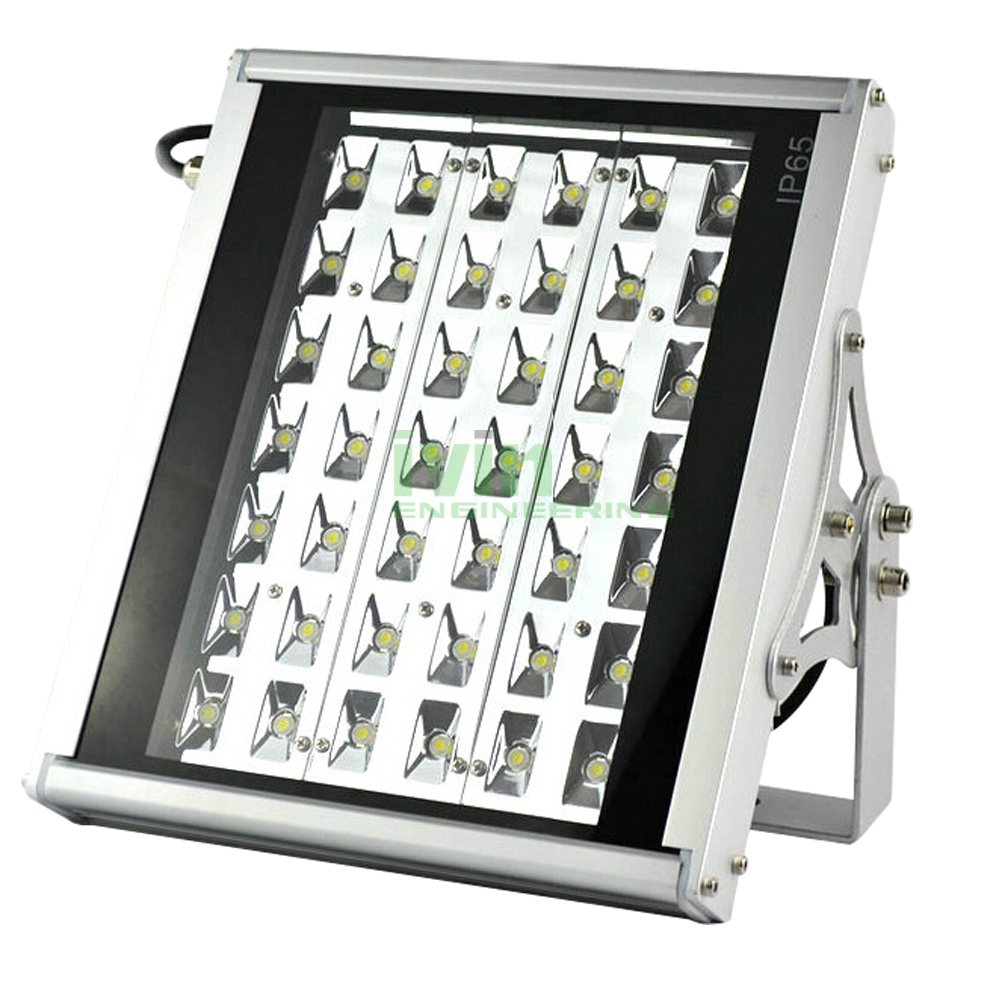

HIGH quality LED flood light housing.
FL-E-1
Export hight quality LED flood light housing, IP66 100W 150W 200W LED tunnel light heat sink housing.
FL-E-1

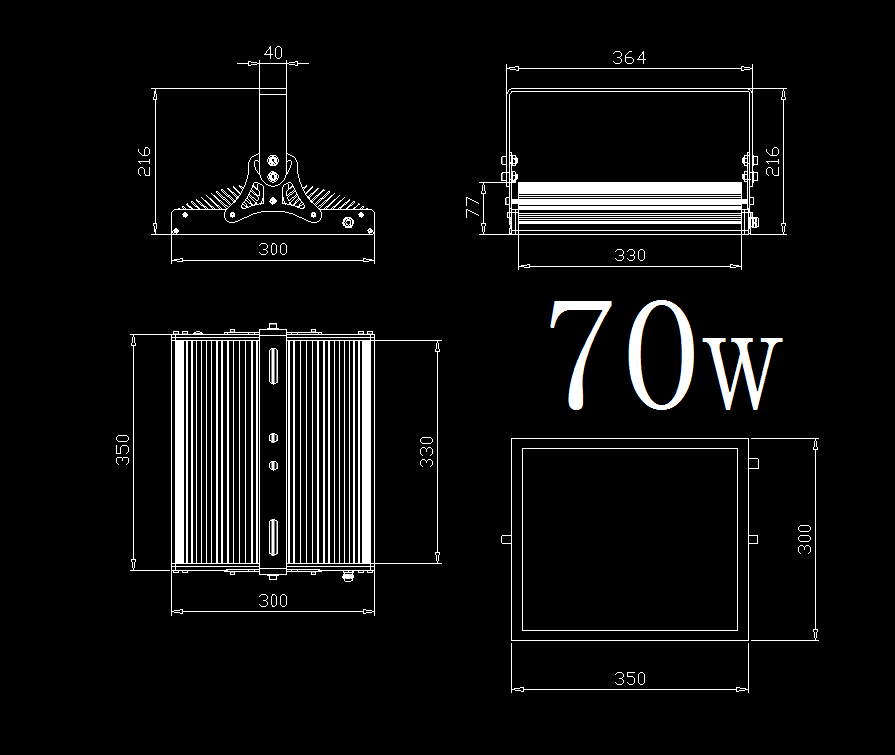

| LEDs Power consuption | Light Specification | Heatsink Lenght | Weight: | |
| Lumens LEDs 42*1W | CREE 35*35 LEDs 42*2W | 260X300X75mm | 240mm | 4.5kg |
| Lumens LEDs 56*1W | CREE 35*35 LEDs 56*2W | 290X300X75mm | 270mm | 5.0kg |
| Lumens LEDs 70*1W | CREE 35*35 LEDs 70*2W | 350X300X75mm | 330mm | 5.9kg |
| Lumens LEDs 84*1W | CREE 35*35 LEDs 84*2W | 410X300X75mm | 390mm | 6.8kg |
| Lumens LEDs 98*1W | CREE 35*35 LEDs 98*2W | 470X300X75mm | 450mm | 7.7kg |
| Lumens LEDs 112*1W | CREE 35*35 LEDs 112*2W | 530X300X75mm | 510mm | 8.6kg |
| Lumens LEDs 126*1W | CREE 35*35 LEDs 126*2W | 590X300X75mm | 570mm | 9.5kg |
| Lumens LEDs 140*1W | CREE 35*35 LEDs 140*2W | 650X300X75mm | 630mm | 10.3kg |
| Lumens LEDs 154*1W | CREE 35*35 LEDs 154*2W | 710X300X75mm | 690mm | 11.2kg |
| Lumens LEDs 168*1W | CREE 35*35 LEDs 168*2W | 770X300X75mm | 750mm | 12.1kg |
| Lumens LEDs 182*1W | CREE 35*35 LEDs 182*2W | 830X300X75mm | 810mm | 13.0kg |
| Components & quantity: | |||||||
|
1 * Aluminum extrusion heat sink - silver anodized. 1 * 4mm tempered glass, with IP65 words and black edges to be black silk-printed on. 2 * side silicon sealing bar + 2 * end silicon sealing gasket. 2 * Aluminum end caps, one closed, one with M12 size PG7, for wire enter. 1 * angle adjustable install bracket - T=5mm SPCC - silver painting finish. 2 * Driver install aluminum clips, at the back. 1 * PG7 + full set 304 steel screws. ( PCB & Reflector for chosen, USD1.0 for 1* 14W PCB + 1* 14W Reflector Piece. ) 14W PCB, For Lumens LEDs 14*1W series link. 14W Reflector, ABS material with highly reflectivity vacuun coating, 120° * 60° angle.
|
|||||||
